Product Details
Laser methane (CH4) detection with two product options. Please select the required version before ordering.
OPTIONS

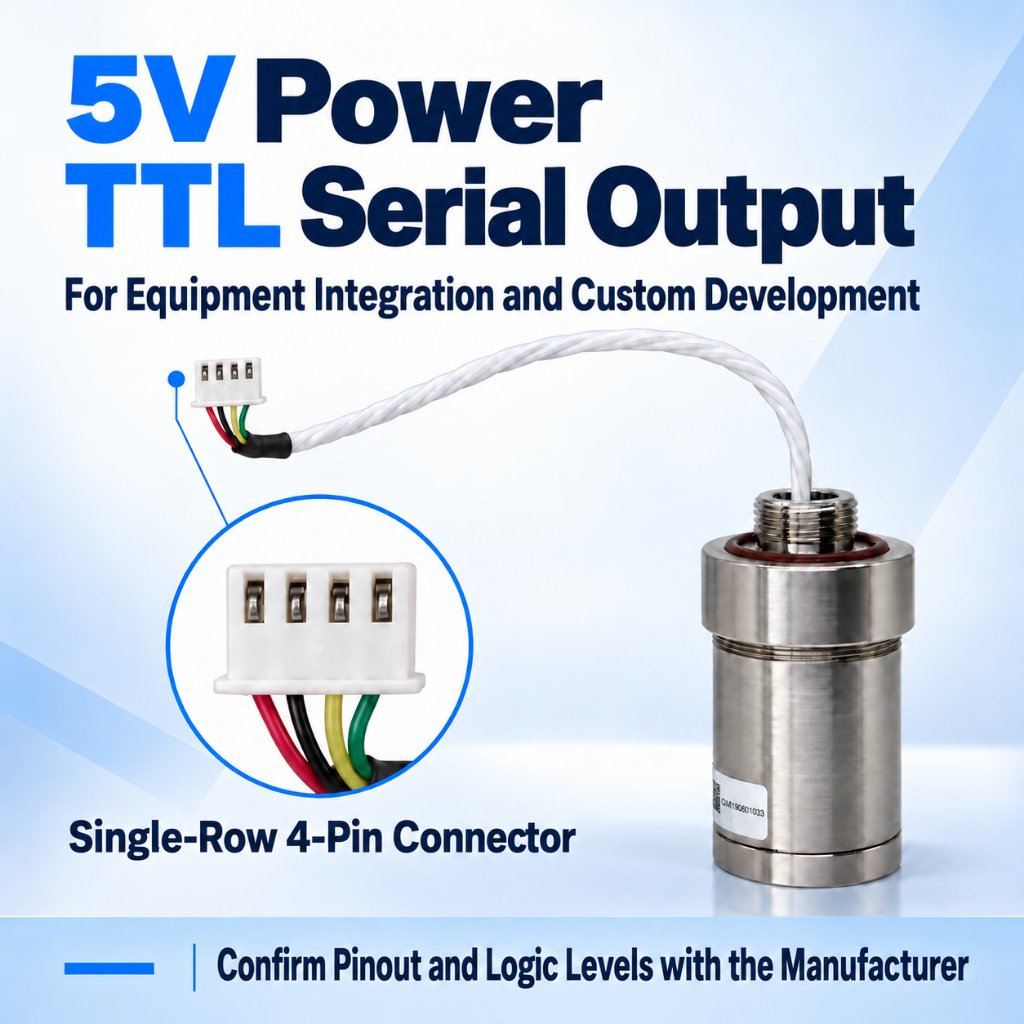

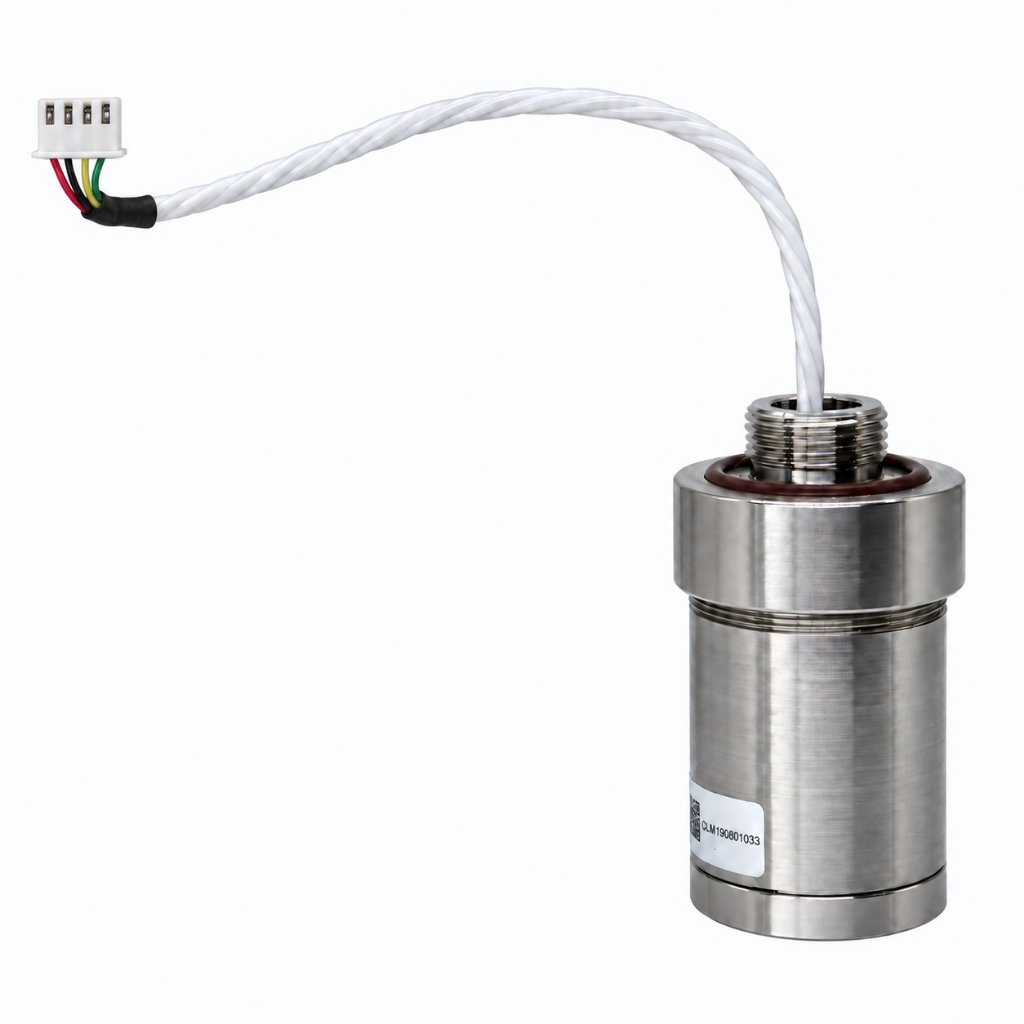

1. 5V TTL Sensor Module: sensor module for integration with a compatible controller.
2. LED Gas Alarm: complete methane gas alarm with LED concentration display and audible/visual warning.
SENSOR MODULE SPECIFICATIONS
Target gas: Methane (CH4)
Detection: Laser absorption, diffusion sampling
Measuring range: 0-100% Vol
Power supply: 5V DC
Output: TTL UART serial interface
Housing: 304 stainless steel
Accuracy at 0-1% Vol: +/-0.05% Vol
Accuracy above 1% Vol: +/-5% of the reading
Resolution: 0.01%
Response time: less than 50 seconds; typical 30 seconds
Operating temperature: -10 to +50 C
Relative humidity: less than 98% at +25 C
Operating pressure: 30-150 kPa

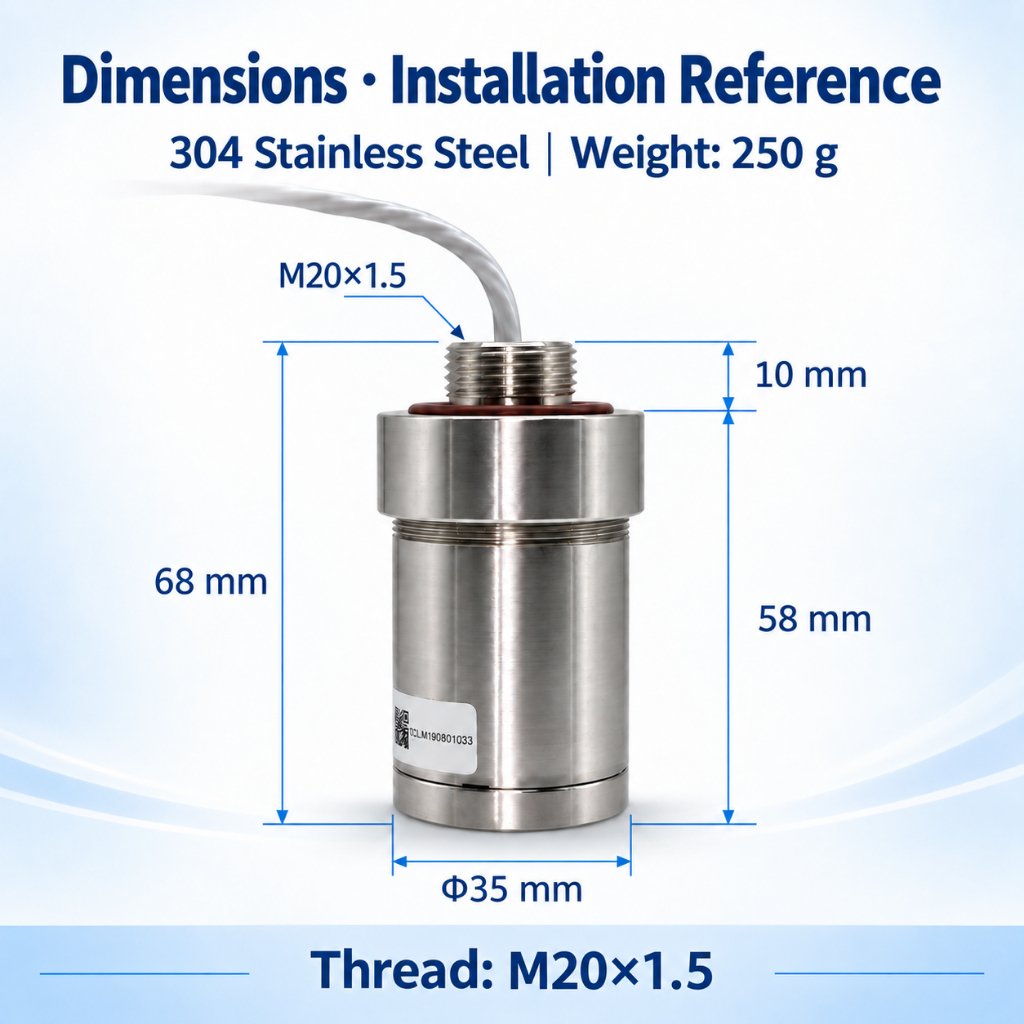

Dimensions: 68 mm total height; 35 mm base diameter
The module and complete alarm are separate purchase options. The 5V supply and TTL output specifications apply to the sensor module. The complete alarm has its own wiring and interface requirements.
Confirm the pin assignment and UART logic level before connecting the sensor module. Do not connect the TTL interface directly to RS232 or RS485. %Vol and %LEL are different concentration units. Follow the supplied installation and calibration instructions.
Available Models & Reference Prices
| Version | Model / SKU | Reference Price |
|---|---|---|
| 5V TTL Sensor Module | 1081352586177-TTL | $87.88 USD |
| LED Gas Alarm | 1081352586177-LED | $349.58 USD |
The displayed currency follows the current language. Prices are for selection reference only; contact us to confirm the final quotation, lead time, and configuration.
